CUSTOM Mode Life Cycle

1. Starting a Session

Starting a session has two pieces:

1. Generating a session token.
2. Starting the session with the session token.

To start in CUSTOM mode, ensure that the session token is set to CUSTOM mode. See here for more details on configuring LiveAvatar - https://docs.liveavatar.com/docs/configuring-custom-mode

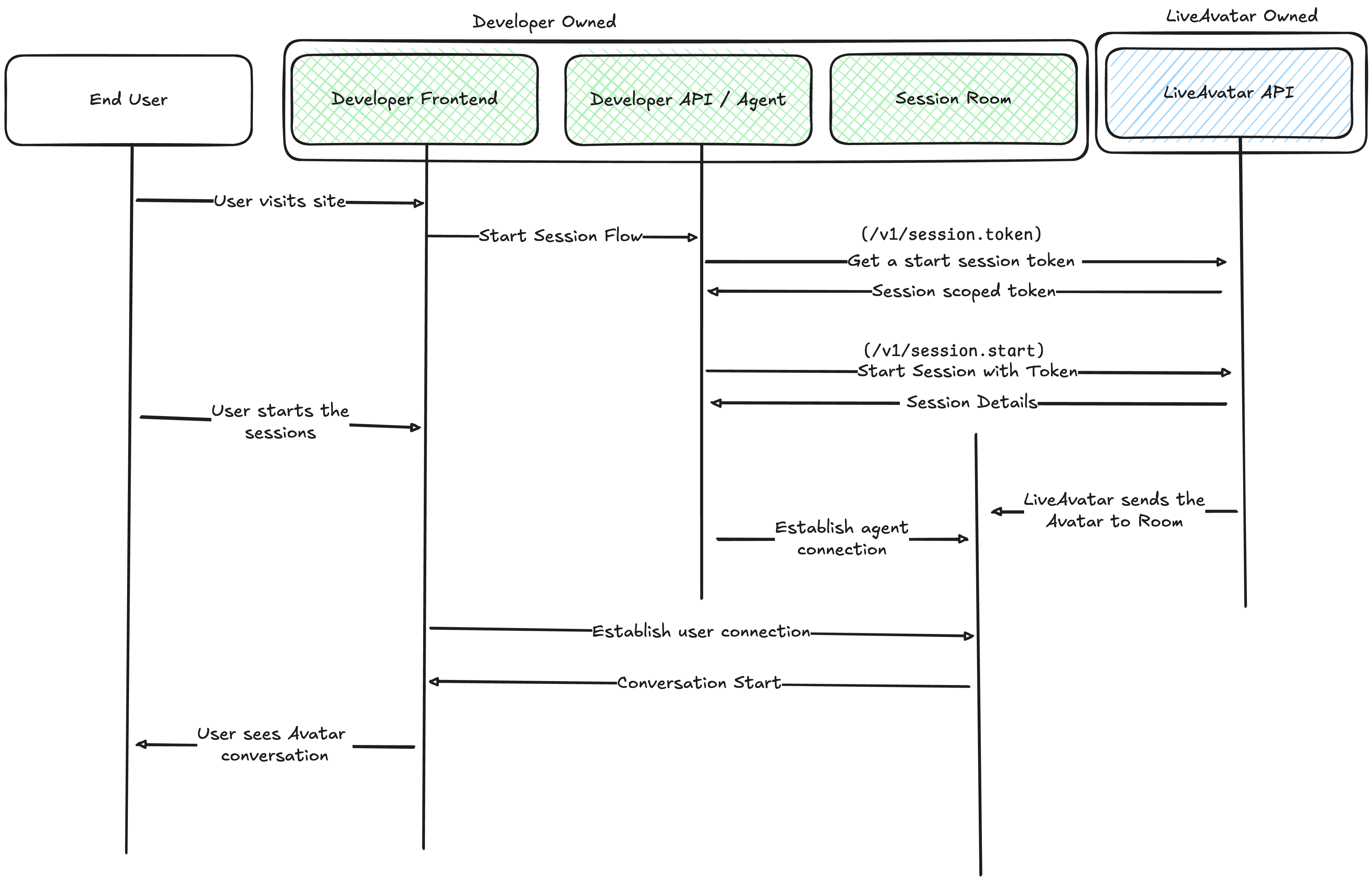

An example flow looks something as follows:

1. When the user first visits the site, create a session token that can be used to call various API requests. We recommend having this be managed by your backend instance.
2. Start the session. Using the session token you will be able to start/end the session.
   1. In our example, we recommend having your backend manage both the token generation and session start call.
   2. We send the relevant session information over.
3. Once the session is started, we send our avatar stream into the specified WebRTC room. It's up to the developer to then:
   1. Connect their agent/API into this room.
   2. Connect the user into this room.

2. Managing the Session

In CUSTOM mode, we provide a websocket connection that will enable developers to send any avatar specific events over. This includes:

• Commanding the avatar to say something.
• Interrupting the avatar.
• Changing the avatar's pose.

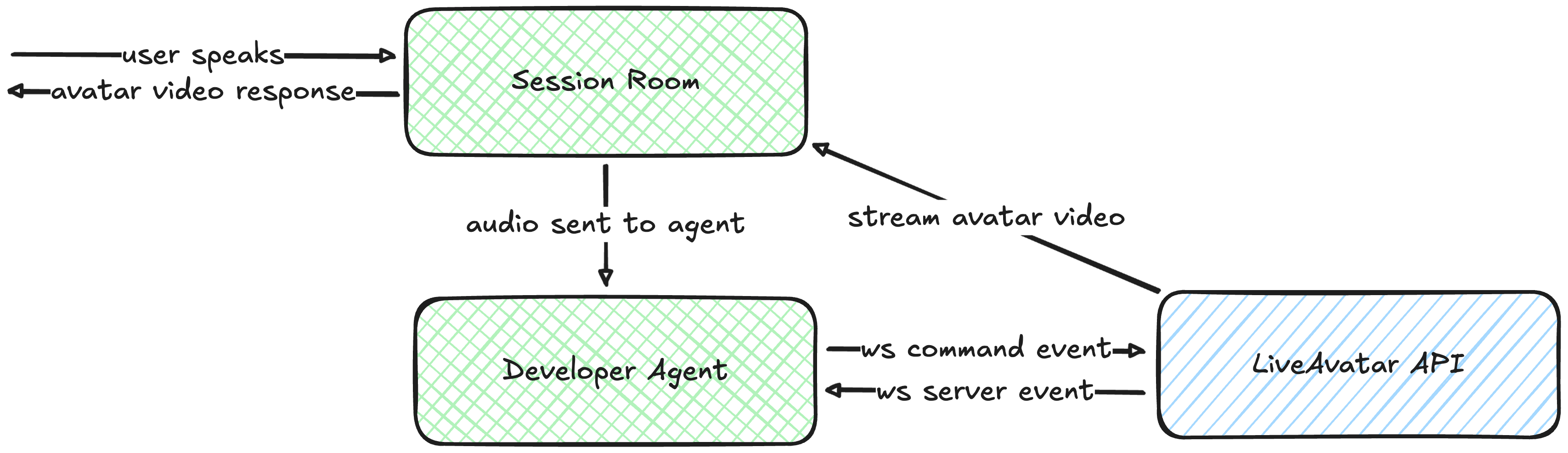

Recommended Architecture

The recommended flow of data is as follows:

1. User starts speaking and data is sent to the room
2. Developer's agent listens into the room and processes the user input
   1. It then constructs the response audio that should be relayed back
3. Developer's agent then streams the response to our API via the websocket
4. LiveAvatar will then send to the room the avatar video frame data, which then gets displayed to the user.

Although we call it "agent" here, this can also be a simple backend service dedicated to processing audio from the room.

3. Ending the Session

When the session is closed, we will do the following.

• Our Avatar will leave the current LiveKit room.
• If we spun up a LiveKit room, we will also teardown said room.
• Close the websocket connection.

We recommend cleaning up resources that currently publish/subscribe to events from the websocket. In addition, you'll need to manage cleaning up any personal LiveKit data and managing the user's room experience.
